Predicting Wall Loss Before It Happens with CFD-Based Erosion Analysis
Pipelines transporting slurry, sand-laden hydrocarbons, produced water, or mineral suspensions face highly aggressive internal flow conditions. Erosion — caused by the repeated impact of solid particles on pipe walls — is one of the most expensive and least visible integrity threats. Because erosion progresses gradually and internally, it often goes unnoticed until a rupture occurs.
Computational Fluid Dynamics (CFD) allows engineers to quantitatively predict erosion long before damage emerges. As engineering consultants in Canada, ENA2 uses advanced Eulerian–Lagrangian CFD modeling to simulate particle motion, turbulence interaction, and wall impacts with engineering accuracy. The result is a set of erosion risk maps that help identify critical thinning zones and support better integrity decisions.
What this CFD erosion analysis helps determine
Identify high-risk wall-loss regions before visible damage becomes critical.
Understand recirculation, secondary flow, turbulence, and particle-wall interaction zones.
Connect particle velocity, angle, residence time, and impact frequency to erosion rate.
Use erosion contours to guide inspection planning, design review, and integrity prioritization.
How CFD Predicts Erosion in Piping Systems
The Eulerian–Lagrangian Framework: The Foundation of Erosion CFD
CFD erosion modeling relies on two interconnected physical descriptions:
Solves the fluid flow field, including velocity, pressure, turbulence, recirculation, and wall-related flow behavior.
Tracks particle motion through the resolved flow field to evaluate impact behavior and erosion risk locations.
Together, these phases allow CFD to resolve how particles accelerate, migrate, and ultimately impact pipe walls — the fundamental mechanism behind erosion.
Eulerian Continuous Phase: Fluid Flow Field
In CFD-based erosion prediction, the Eulerian continuous phase represents the fluid phase, such as water, oil, slurry, gas, or multiphase mixtures, as a smooth continuum. The governing mathematical framework is based on the Reynolds-Averaged Navier–Stokes equations, which describe conservation of mass and momentum in turbulent flow.
This formulation is used to resolve the continuous flow field that drives particle migration, impact direction, and local erosion intensity in CFD-based erosion analysis.
This solution provides:
- Velocity distribution
- Pressure gradients
- Turbulence quantities
- Swirl and secondary flows
- Recirculation zones
- Boundary layer behaviour
- Wall shear stress
These flow structures determine how particles migrate toward walls, where they impact, and with what energy.
Lagrangian Particle Tracking: Discrete Phase Model
Once the continuous flow field is solved, particles are tracked individually using Newton’s second law. The Lagrangian particle model predicts how particles travel through the flow, interact with turbulence, and collide with pipe surfaces.
Lagrangian tracking connects particle trajectory, impact angle, impact velocity, and impact frequency to the erosion risk that develops at the pipe wall.
Particles may experience:
- Drag forces
- Buoyancy
- Lift forces
- Turbulent dispersion
- Collision and rebound behaviour
The solver predicts:
- Particle trajectories
- Impact angles
- Impact velocities
- Impact frequencies
- Residence times
Because erosion depends directly on impact angle, velocity, and frequency, the Lagrangian phase is essential for detailed particle-wall interaction assessment.
Erosion Rate Calculation
Once particle impacts are recorded from the Lagrangian tracking, erosion rates can be calculated for each wall cell. Semi-empirical erosion correlations are then used to estimate local erosion intensity and identify high-risk zones.
Converts particle impact data into a wall-based erosion rate field, helping identify where thinning risk is expected to concentrate.
Supports interpretation of the erosion model terms without manually transcribing or altering the mathematical content.
The final output is a high-resolution, geometry-specific erosion contour that highlights thinning zones in elbows, tees, valves, reducers, and fittings. For project-specific support, ENA2 provides dedicated erosion analysis services as part of its CFD capabilities.

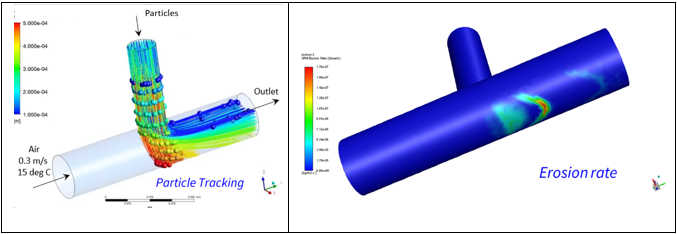

CFD Results: Particle Tracking and Erosion Rate Contours
CFD erosion results help engineers visualize where particles concentrate, how they impact pipe walls, and where erosion rate is expected to be highest. These visual outputs can support design changes, inspection planning, integrity review, and risk prioritization.
Turn CFD Erosion Findings into Engineering Decisions
Use this article as a starting point for erosion assessment, CFD modeling, internal simulation capability, or a project discussion with ENA2.
CFD Erosion Analysis FAQ
Answers to common questions about CFD-based erosion analysis, particle tracking, pipeline wall loss risk, and engineering support.
What is CFD-based erosion analysis?
CFD-based erosion analysis uses Computational Fluid Dynamics to simulate fluid flow, particle motion, wall impact behaviour, and erosion risk in piping systems, pipelines, fittings, and industrial equipment.
How does CFD help predict pipeline wall loss?
CFD helps predict pipeline wall loss by resolving flow behaviour, particle trajectories, impact angles, impact velocities, and erosion rate patterns that may not be visible through simple calculations or external inspection alone.
What is the Eulerian–Lagrangian approach in erosion CFD?
The Eulerian–Lagrangian approach models the fluid as a continuous phase while tracking particles as a discrete phase. This allows engineers to understand how particle-laden flow interacts with pipe walls and where erosion risk may concentrate.
What is Lagrangian particle tracking used for?
Lagrangian particle tracking is used to evaluate particle trajectories, residence time, wall impact frequency, impact velocity, and impact angle, which are key inputs for erosion rate assessment.
What inputs are typically needed for CFD erosion analysis?
Useful inputs may include pipe or equipment geometry, flow rate, fluid properties, particle size distribution, particle concentration, material information, operating conditions, and the engineering question the analysis needs to answer.
